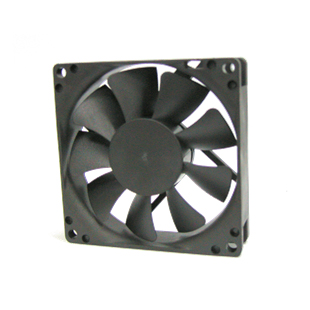

DC FAN 8020, DC8020 Cooling Fan

80 x 80 x 20mm OEM/ODM
Description





Frame Type:Plastic housing and blade material are UL 94V-0 rating
Impeller:Plastic(UL:94-0)
Bearing:Ball / 1Ball / Sleeve Bearing
Operating Temperature:-10°C to +70°C
Lead Wire:UL 1007 AWG#26
Voltage Available:5V / 12V
Weight:63grams



Specification
ModelBearing
SE
Bearing
B1
Bearing
B2
Voltage
(v)
Speed
(RPM)
Current
(A)
Power
(W)
AirFlow
(CFM)
StaticPressure
(mm-Aq)
Noise
dB(A)
DF0802005XXLN---0522000.371.919.51.625.4
DF0802005XXMN---0525000.442.222.32.328.3
DF0802005XXHN---0530000.552.726.33.331.8
DF0802012XXMN---1222000.111.319.51.625.4
DF0802012XXHN---1225000.131.522.32.328.3
DF0802012XXUN---1230000.192.326.33.331.8
