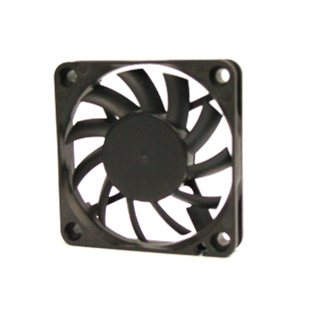

DC FAN 6010, DC6010 Cooling Fan

60 x 60 x 10mm OEM/ODM
Description



Frame Type:Plastic housing and blade material are UL 94V-0 rating
Impeller:Plastic(UL:94-0)
Bearing:Ball / 1Ball / Sleeve Bearing
Operating Temperature:-10°C to +70°C
Lead Wire:UL 1007 AWG#26
Voltage Available:5V / 12V
Weight:30grams



Specification
ModelBearing
SE
Bearing
B1
Bearing
B2
Voltage
(v)
Speed
(RPM)
Current
(A)
Power
(W)
AirFlow
(CFM)
StaticPressure
(mm-Aq)
Noise
dB(A)
DF0601005XXLN---530000.140.711.11.527.6
DF0601005XXMN---536000.221.113.72.129.4
DF0601012XXLN---1230000.11.211.11.527.6
DF0601012XXMN---1236000.121.413.72.129.4
DF0601012XXHN---1242000.151.816.43.133.6
DF0601012XXUN---1248000.192.318.63.837.5
