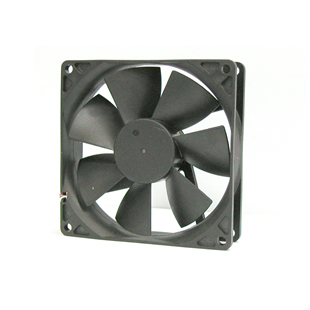

DC FAN 9225, DC9225散熱風扇

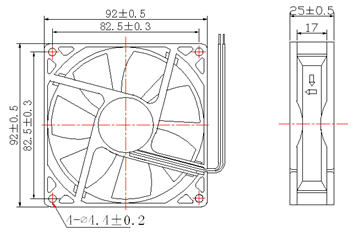

92 x 92 x 25mm
描述

框架類型:Plastic housing and blade material are UL 94V-0 rating
葉輪:Plastic(UL:94-0)
軸承:Ball / 1Ball / Sleeve Bearing
工作溫度:-10°C to +70°C
導線:UL 1007 AWG#26
可用電壓:12V / 24V / 48V
重量:80g



規格
機種軸承
SE
軸承
B1
軸承
B2
額定
電壓(v)
轉速
(RPM)
額定
電流(A)
功率
(W)
風量
(CFM)
靜壓
(mm-Aq)
噪音
dB(A)
DF0922512XXLN---1222000.151.837.532.6632.9
DF0922512XXMN---1225000.25341.612.8233.6
DF0922512XXHN---1230000.354.252.914.740.4
DF0922512XXUN---1242000.910.879.867.749.2
DF0922524XXLN---2422000.12.437.532.6632.9
DF0922524XXMN---2425000.122.8841.612.8233.6
DF0922524XXHN---2430000.215.0452.914.740.4
DF0922524XXUN---2442000.4410.5679.867.749.2
DF0922548XXLN---4822000.083.8437.532.6632.9
DF0922548XXMN---4825000.14.841.612.8233.6
DF0922548XXHN---4830000.157.252.914.740.4
DF0922548XXUN---4842000.419.279.867.749.2
