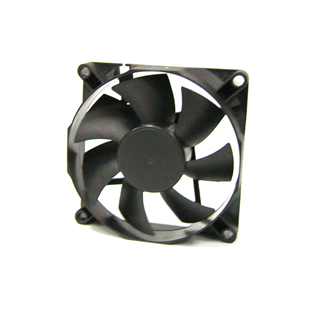

DC FAN 8025, DC8025 散熱風扇

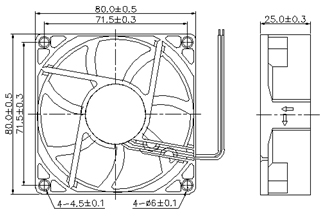

80 x 80 x 25mm
描述

框架類型:Plastic housing and blade material are UL 94V-0 rating
葉輪:Plastic(UL:94-0)
軸承:Ball / 1Ball / Sleeve Bearing
工作溫度:-10°C to +70°C
導線:UL 1007 AWG#26
可用電壓:5V / 12V / 24V / 48V
重量:68g



規格
機種軸承
SE
軸承
B1
軸承
B2
額定
電壓(v)
轉速
(RPM)
額定
電流(A)
功率
(W)

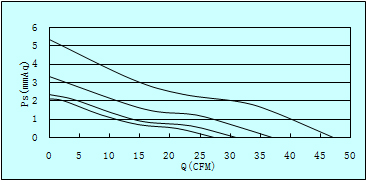

風量
(CFM)
靜壓
(mm-Aq)
噪音
dB(A)
DF0802505XXLN---0522000.311.627.52.125.7
DF0802505XXMN---0525000.422.131.12.329
DF0802505XXHN---0530000.512.637.23.335.6
DF0802512XXLN---1222000.11.227.52.125.7
DF0802512XXMN---1225000.131.631.12.329
DF0802512XXHN---1230000.22.437.23.335.6
DF0802512XXUN---1240000.394.747.35.340.8
DF0802524XXLN---2422000.081.927.52.125.7
DF0802524XXMN---2425000.112.631.12.329
DF0802524XXHN---2430000.143.437.23.335.6
DF0802524XXUN---2440000.235.547.35.340.8
DF0802548XXLN---4822000.041.927.52.125.7
DF0802548XXMN---4825000.052.431.12.329
DF0802548XXHN---4830000.073.437.23.335.6
DF0802548XXUN---4840000.167.747.35.340.7
