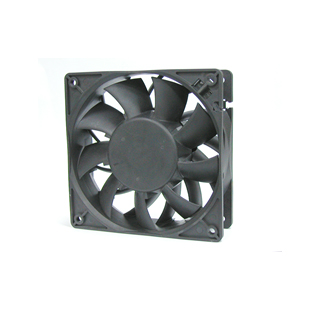

DC FAN 12038, DC12038 散熱風扇

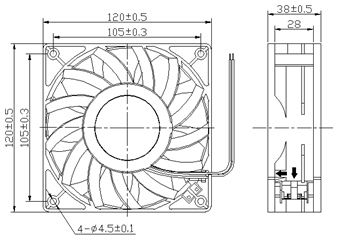

120 x 120 x 38mm
描述

框架類型:Plastic housing and blade material are UL 94V-0 rating
葉輪:Plastic(UL:94-0)
軸承:Ball / 1Ball / Sleeve Bearing
工作溫度:-10°C to +70°C
導線:UL 1007 AWG#26
可用電壓:12V / 24V
重量:400g



規格
機種軸承
SE
軸承
B1
軸承
B2
額定
電壓(v)
轉速
(RPM)
額定
電流(A)
功率
(W)

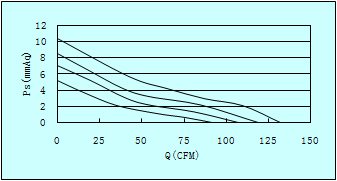

風量
(CFM)
靜壓
(mm-Aq)
噪音
dB(A)
DF01203812XXLN---1220000.455.492.095.1244.4
DF01203812XXMN---1223000.637.56107.67.0546.1
DF01203812XXHN---1226000.748.88119.758.4548.8
DF01203812XXUN---1229001.2815.36132.4610.3951.3
DF01203824XXLN---2420000.25692.095.1244.4
DF01203824XXHN---2423000.317.44107.67.0546.1
DF01203824XXMN---2426000.4410.56119.758.4548.8
DF01203824XXUN---2429000.614.4132.4610.3951.3
DF01203848XXLN---4820000.167.6892.095.1244.4
DF01203848XXHN---4823000.188.64107.67.0546.1
DF01203848XXMN---4826000.2411.52119.758.4548.8
DF01203848XXUN---4829000.314.4132.4610.3951.3
