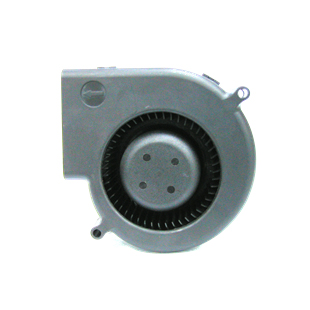

DC Blower 9733, DC9733 散熱風鼓, 鼓風機

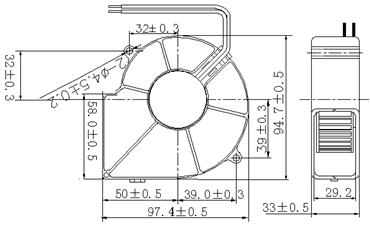

97 x 94 x 33mm
描述

框架類型:Plastic housing and blade material are UL 94V-0 rating
葉輪:Plastic(UL:94-0)
軸承:Ball / 1Ball / Sleeve Bearing
工作溫度:-10°C to +70°C
導線:UL 1007 AWG#26
可用電壓:12V / 24V
重量:160g



規格
機種軸承
SE
軸承
B1
軸承
B2
額定
電壓(v)
轉速
(RPM)
額定
電流(A)
功率
(W)
風量
(CFM)
靜壓
(mm-Aq)
噪音
dB(A)
DF0973312XXLN---1222000.222.616.46.641
DF0973312XXMN---1227000.344.120.111.446
DF0973312XXHN---1232000.75924.416.350
DF0973312XXUN---1234000.8510.226.418.552
DF0973324XXLN---2422000.12.416.46.641
DF0973324XXMN---2427000.163.820.111.446
DF0973324XXHN---2432000.266.224.416.350
DF0973324XXUN---2434000.49.626.418.552
