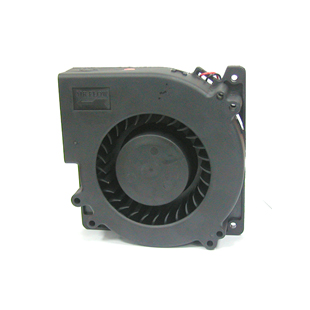

DC Blower 12032, DC12032 散熱風鼓,鼓風機

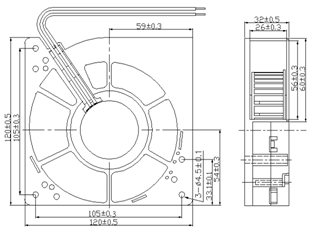

120 x 120 x 32mm
描述

框架類型:Plastic housing and blade material are UL 94V-0 rating
葉輪:Plastic(UL:94-0)
軸承:Ball / 1Ball / Sleeve Bearing
工作溫度:-10°C to +70°C
導線:UL 1007 AWG#26
可用電壓:12V / 24V
重量:260g



規格
機種軸承
SE
軸承
B1
軸承
B2
額定
電壓(v)
轉速
(RPM)
額定
電流(A)
功率
(W)
風量
(CFM)
靜壓
(mm-Aq)
噪音
dB(A)
DF01203212XXLN---1222000.232.7620.977.6249.2
DF01203212XXMN---1226000.283.3623.7710.1653.6
DF01203212XXHN---1232000.526.2430.5615.2456.1
DF01203212XXUN---1236000.718.5233.8819.81258.6
DF01203224XXLN---2422000.133.1220.977.6249.2
DF01203224XXHN---2426000.194.5623.7710.1653.6
DF01203224XXMN---2432000.348.1630.5615.2456.1
DF01203224XXUN---2436000.4711.2833.8819.8158.6
